BASS REFLEX COMPACT SUBWOOFER

SW118M

Single 18-inch

1 x 18-inch, Vented box

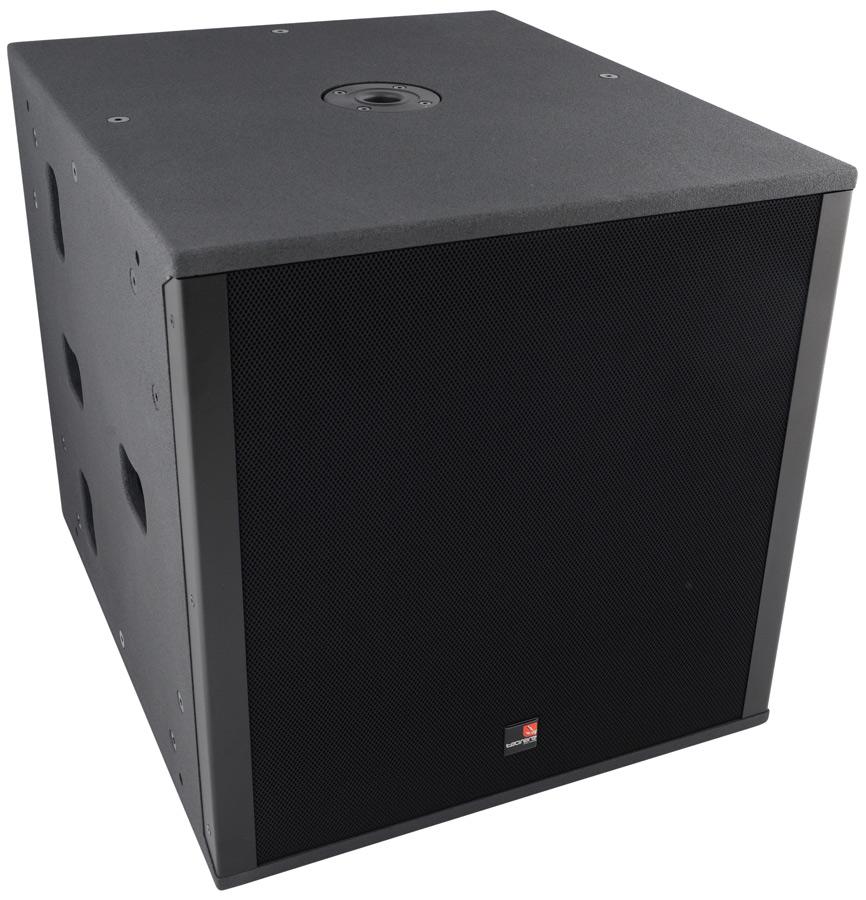

Tecnare SW118M 18 inches Bass Reflex Subwoofer, left view

Power

1200 W AES / 2400 W continuous

Impedance

8 Ohm

SPL

130 dB continuous /136 dB peak

Weight

46 Kg

The Tecnare SW118M is a powerful 1×18-inch direct radiation, vented subwoofer cabinet. It has been designed for all kinds of sound reinforcement: short, medium or long throw.  Optionally, the box can houses rigging hardware to be used in array systems, such as CLa208.

It is the ideal option to be combined with V Series or IBIZA One Series.

The response given with this subwoofer is very deep, starting at 35 Hz.

Its optional rigging hardware support both grounds stacked or flown vertical arrayand can be chosen for touring or fixed installations.

The enclosure has been made with the latest CAD techniques assuring a perfect and rigid construction. Weatherized finish is provided, as the cabinet is covered with Poliurea texture finish and protected with epoxy powder coating grills.



Features

  • The SW118M is the companion subwoofer to the CLa208. The SW-118M’s simple-to-use rigging solution allows users to construct flown and ground stacked arrays with ease
  • 1 x 18-inch-LF cone driver
  • Optimally vented for increased response

Applications

  • Band PA
  • Coporate Events
  • Sound system rental
  • Mobile and fixed DJ systems
Frequency Response: 35 Hz – 400 Hz ±4dB, measured on axys
Components: 1×18” LF driver
Nominal Dispersion: 360º
Impedance: 8 Ohm
Axial Sensitivity: 98 dB (1w/1m)
Calculated SPL:   129 dB continuous/ 135 Peak
Power Handling: 1200 W AES / 2400 W continuous
Dimensions (HxWxD) (millimeters/inches): 596x590x691 mm / 23.46″ x 23.23″ x 27.20″
Net Weight (kg/Pounds): 46 Kg / 101.41 lbs
Construction:  18mm birch plywood. Finished in black semi-matt textured Poliurea weatherized coating. Four recessed carrying handle. Powder coated perforated steel with acoustically transparent reticulated fabric
Grille: Powder coated perforated steel



  • Accessories:
    • SW118MR: SW-118M + TRK-118 rigging kit installed at the factory
    • Top Grid: THV-208-118M
    • Wood dolly: TWD-118
    • Rigging Structure: iTHV-118M designed for fixed installations
    • Adapter Link Between SW118M and SW118M: iTLink118M, designed for fixed installations
    • Adapter Link Between SW118M and CLa208 : CLa208iSW118M_Link, designed for fixed installations
    • Transition Frame SW-118MR to CLa208: TTF-208-118
    • Two-high SW-118M Transit Cover: Covers two stacked
    • Three-high SW-118M Transit Cover: Covers three stacked

    Self-Powered Versions:

    • SW-118M PCCBox

    Colour Option

    • Black
    • White
    • RAL Colour

Band PA

Corporate Events

Sound system rental

Mobile and fixed DJ systems





























SW118M Accessories

SW118M 1
ITHV-118M

Rigging Structure for SW-118M. Allows up to 12 SW-118M Subwoofer. Designed for fixed installations

SW118M 2
ITLINK118M

The Tecnare® iTLink118M accessory part allow rigging a stright vertical array of SW-118M enclosures array
in nown conoguration. Two iTLink118M plates are needed to joing a couple of SW-118M enclosure.

SW118M 3
CLa208iSW118MLink

Adapter Link beetween SW118M and CLa208

SW118M 4
THV-208/118M

Multipurpose Grid of CLa208/SW-118M. Allow up to 10 SW-118M Subwoofer to be flown & groundstacking

SW118M 5
TRK-118M

Rigging Hardware Kit from SW-118M Subwoofer

SW118M 6
TWD 118

Wooden Transport dolly of SW-118M. Allows up to 3 SW-118M Subwoofer

SW118M Cardioid Operation

Gradient Front Back Subwoofer

SW118M 7

Gradient Horizontal Front Back Front Subwoofer

SW118M 8

Line Gradient Subwoofer

SW118M 9

End fire cardioid sub

SW118M 10
